Laryngology · Cannula

Adult Tracheostomy Cannula

Biocompatible silicone tracheostomy cannula for adult patients. It provides a secondary airway through the tracheostoma and is manufactured in variable lengths (from 60 to 110 mm) to suit longer or shorter device paths. Part of the Stening® cannula line.

Product code: CTA9
Adult silicone tracheostomy cannula Stening® (CTA9)
Adult silicone tracheal cannula Stening®
Application of the cannula in facial and mandible fractures

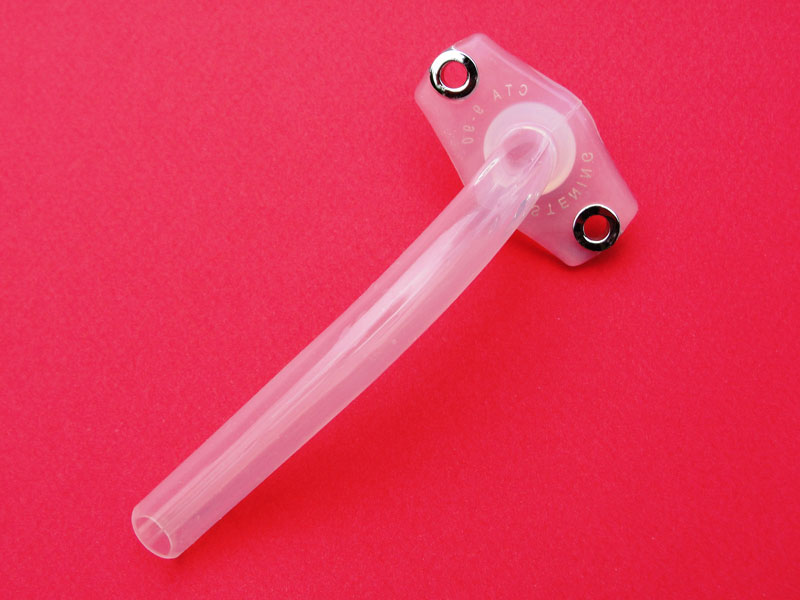

Application in severe sleep apnea not amenable to CPAP

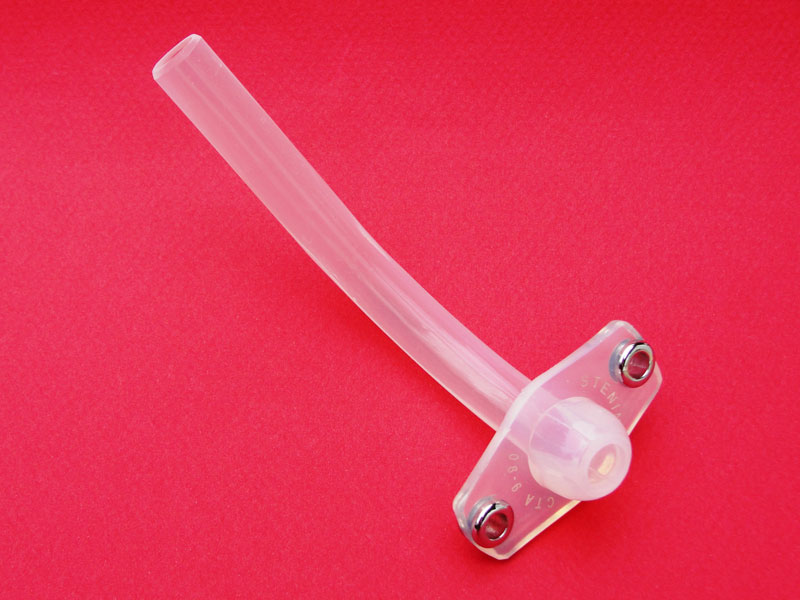

Application in severe subcutaneous emphysema of the neck
Laryngology · Cannulas

Adult Tracheostomy Cannula

Code CTA9

The Adult Tracheostomy Cannula —also known as an adult tracheal cannula— provides a secondary airway through the tracheostoma. The CTA9 cannulas are manufactured in variable lengths to suit different situations that may require longer or shorter device paths.

Made of biocompatible Stening® silicone, it is flexible and easy to place and handle. The longer versions help maintain ventilation even in the presence of low or precarinal tracheal lesions that may lie beyond the reach of other devices.

Material
Biocompatible silicone
Line
Laryngology / Tracheostomy
Presentations
6 sizes (CTA9-60 to CTA9-110)
Check availability Back to catalog
Technical specifications

Product information

Review the indications, dimensions, how to use, care and warnings of the Adult Tracheostomy Cannula.

Clinical indications

The Adult Tracheostomy Cannula is indicated to provide and maintain a secondary airway through the tracheostoma.

  • As a stent, in distant, precarinal, stenotic, inflammatory tracheal lesions or of other etiologies that result in a partial occlusion hindering the patient’s ventilation.
  • Secondary access to the airway.
  • Upper airway obstruction.
  • Severe lesions of the thyroid or cricoid cartilages, hyoid bone or great vessels.
  • Severe subcutaneous emphysema of the neck.
  • Facial and mandible fractures.
  • Control of excessive secretions of the respiratory tract.
  • Prevention of aspiration of oral and gastric secretions.
  • Preparation for invasive head and neck procedures.
  • Severe sleep apnea not amenable to CPAP or others.
  • All those of tracheostomies.

Available dimensions

The Adult Tracheostomy Cannula is offered in six sizes (CTA9-60 to CTA9-110), with the same internal and external diameter and increasing lengths from 60 to 110 millimeters.

Dimensional scheme of the Adult Tracheostomy Cannula CTA9
CodeInternal ØExternal ØLength
CTA9-6091260
CTA9-7091270
CTA9-8091280
CTA9-9091290
CTA9-100912100
CTA9-110912110

Measurements expressed in millimeters. Stening® CTA9 cannulas 100 and 110 mm in length have been used successfully to maintain ventilation in tracheostomized patients with severe low or precarinal subobstructive tracheal lesions that may lie beyond the reach of other endotracheal devices. For specific size inquiries, contact us at (+54) 11 4553-5070 or (+54) 11 4551-2333.

Placement

The cannulas are introduced directly through the tracheostomy opening.

  1. When a cannula is replaced, the skin must be cleansed with an antiseptic solution.
  2. A gel lubricant may optionally be used to ease the insertion maneuver.
  3. The cannula flange is secured by encircling the neck with the tape provided. Do not apply excessive tension when tying the tape.
  4. Ask the assistant to slip a little finger under the tape before tightening it. This achieves an appropriate tension for comfortable use.
  5. Place a gauze between the flange and the skin of the neck.

Postoperative care

Recommendations for the postoperative care of the patient with a tracheostomy cannula.

  • Change the gauze placed between the cannula flange and the skin at least once a day.
  • Cleanse the skin with an antiseptic solution.
  • In case of an unwanted increase in bronchial secretions or their viscosity, drink plenty of fluids, perform frequent nebulizations and use a suction system to remove secretions through the cannula.
  • Consult your physician.

Warnings for use

Important

The device must not be reused, as this could cause cross-contamination.

Also known as: tracheostomy cannula · adult tracheal cannula · silicone cannula · CTA9
